In die casting mold manufacturing, the most common form of mold damage is cracks and cracks. Stress is the main cause of mold damage. Thermal, mechanical, chemical, and operational shock are all sources of stress, including mechanical and thermal stress. If the heat treatment is not performed properly during the mold processing, it will cause the mold to crack and be scrapped prematurely, especially using only quenching and tempering without quenching. Then, the surface nitriding process is performed, and surface cracking and cracking will occur after several thousand die-casting times.

we have more than 13 years experice on mold, and have a professional team. we will give you the proper advise about your product development. we can do the mold, whatever you supply the sample or drawing or picture. Mold Base:LKM,HASCO Runner:HOt Runner,Cold Runner Mold Weight:50K-10000Ton Injection Machine:80-2500Ton Process Machings:CNC,Cutting,EMD,Drilling,Thread,Carved

Uatar is presently a member of the North American Die Casting Association (NADCA). We adhere to "NADCA Product Specification Standards for Die Casting Aluminum, Aluminum-MMC, Copper, Magnesium, Zinc and ZA Alloys", 9th Edition.

The cold chamber die casting process is a preferred manufacturing method for metals that have high melting points. Typically, this will include metal alloys of aluminum, brass, and copper. The requirements for cold chamber die casting include an outside furnace and a ladle to pour the molten metal. Cold chamber die casting methods are known for their ability to produce denser metal castings.

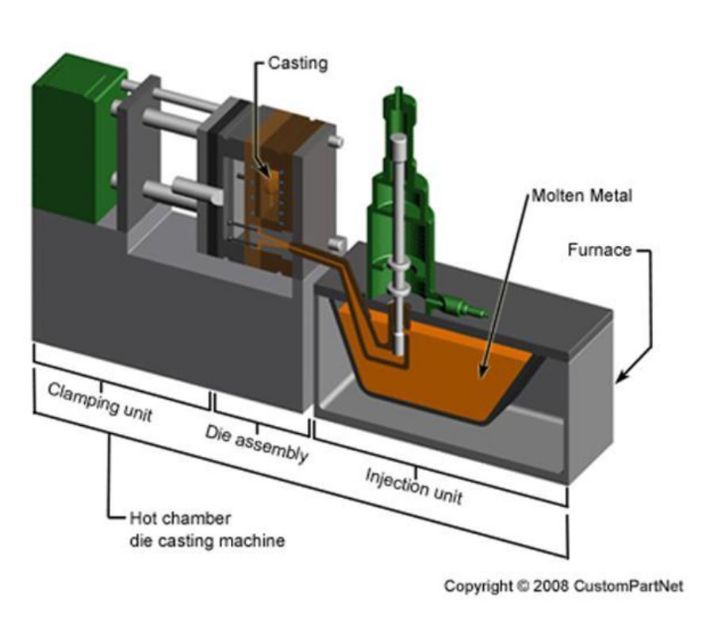

Hot chamber die casting machines are primarily used for zinc, copper, lead, and other low melting point alloys. The injection mechanism of a hot chamber machine is immersed in a molten metal bath of a metal holding furnace. The furnace is attached to the machine by a metal feeding system called the gooseneck.

Die casting is a manufacturing process that is commonly used for producing accurately dimensioned, sharply defined, smooth, or textured surface metal parts. It is accomplished by forcing molten metal under high pressure into reusable metal dies. The die casting molds process follows the subsequent procedures regarding die cast mold manufacturing:

Zinc die casting is used to produce a wide range of parts and components within numerous types of industrial applications. The mechanical properties of zinc alloy die castings at normal temperatures are superior to sand castings of grey iron, brass, and aluminum, particularly in toughness and impact strength. They are much stronger, tougher, and more dimensionally stable than injection molded plastics. The reduced cost and improved properties have made it an ideal replacement for iron, copper, aluminum alloys or plastics parts.

Die casting is an automated casting process in which liquid metal is pressed into a mold under extreme pressure at a high rate of speed. This casting process is highly suitable for mass production of components and is generally used with alloys that have a lower melting point. Since permanent metal molds are utilized for the die casting mold process, it is possible to produce large and complex components with low wall thicknesses.

product description Business type Manufacturer Part Name china Aluminum wheel hub mold and die factory offered casting mold Main Product CNC Milling, Plastic Mould/Tooling, Prototype,Injection Molding Product, Injection Foaming Mold, 3D Printing,Die

Part Name: STANTION RR Part Material：ADC12 Part Size L*W*H(mm): 94.4*151*110.3 Industry：Automotive No. of Cavities: 1*1 No. of Sliders: 2 Structure: 2-plate die Die casting machine: 70T Mold Size(mm): 742*402*459 Build Time: 23 days

Part Material：ADC12 Part Size L*W*H(mm): 692.05*430.27*27.53 Industry: Electrical appliances No. of Cavities: 1*1 No. of Sliders: 0 Structure: 2-plate die Die casting machine: 100T Mold Size(mm): 820*870*430 Build Time: 25 days

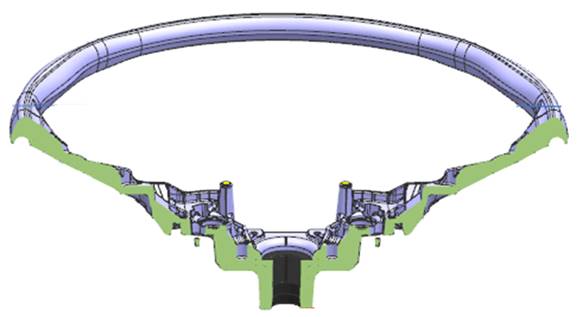

Part Material: Aluminum alloy Part Size L*W*H(mm): 360*350*134 Industry: Automotive Application: steering wheel No. of Cavities: 1*1 No. of Sliders: 0 Type of Mold: Trimming tool Die casting machine: 10T Mold Size(mm): 800*680*190 Build Time: 38 days
